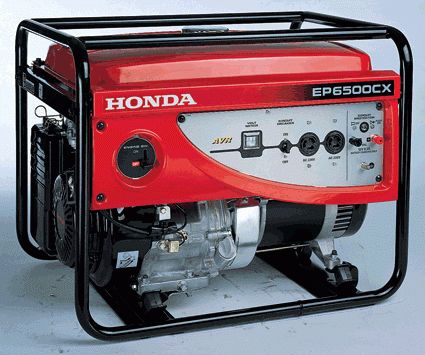

Honda AVR Generators, today’s sophisticated electronic appliances need an equally sophisticated generator, one with Automatic Voltage Regulation (AVR). AVR ensures you get a smooth delivery of power without spiking, lowering your chances of a blown computer, TV or Hi-Fi. Many appliances already on the market, and those to come, regard AVR generators as a necessity to protect your equipment from power surges. If you run sensitive electronic equipment off a generator, you can’t afford not to use a Honda.

-Large capacity Muffler

-Low noise and low vibration, top-level fuel efficiency.

-Voltmeter and Back light: The Voltmeter allows you to measure the high output performance of the generator. The Back light voltmeter allows you to check the generator output even in the dark.

-Fuel Gauge and Oil Alert: Oil alert system stops the engine automatically when oil level is too low. Large fuel gauge allows you to check fuel level at a glance.

-Air Cleaner: Large-size air cleaner ensures excellent air intake efficiency for optimum engine power output.

-Protective Frame: Sturdy frame with upper guard pipes protects the machine, while making it easier to transport.


Specifications

DATA:

AC Frequency (Hz) 50
Ac output voltage (V) 220
Rated AC output (kVA) 5
Max AC output (kVA) 5.5
DC Output 12V-8.3A
Max power output (kW) 9.6 (13PS) @3 600rpm

Continuous operating hours (hrs) 9.2
Operating noise level @ 7m (dB(A)) 72


ENGINE:

Model GX390K1
Type Air-cooled, 4 stroke, OHV, single cylinder
Displacement (cc) 389

Ignition system Transistorized Magneto

Starting system Recoil
Fuel tank capacity (litres) 25



DIMENSIONS:

Dimensions (L x W x H ) (mm) 680 x 510 x 540
Dry weight (kg) 85
